Heater Core Removal, with photos...

Post by 66_Charly » Sun Oct 16, 2011 2:38 pm

My 66 Town Landau with factory AC blew the heater core 2 weeks ago. I bypassed it so I could drive around a little before winter, but it is just too cold in the mornings without a heater. Since I need to repair/replace my heater core, I thought I would post some photos to help out anybody else needing to do this.

I have all my seats removed, so lots of room inside the car. If you follow the shop manual, you will end up removing the lower right dash panel. I am starting with section 16-4, part 6

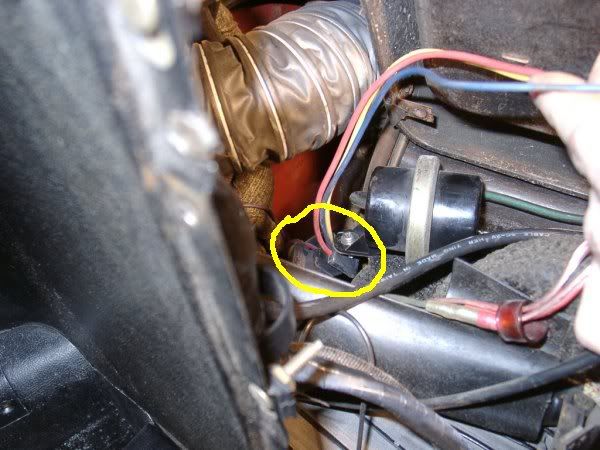

6) Disconnect the resistor plug... (view looking up from passenger floor):
The plug is tough to reach, and you have to pull it apart using just one hand.

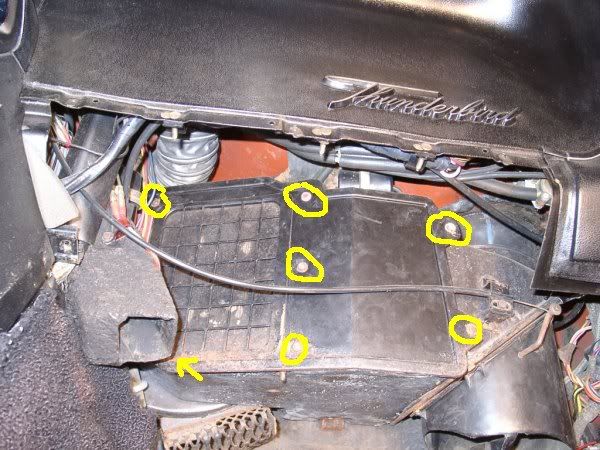

6) continued: Remove seven retaining screws and the recirculating air grill:

Note: Once the grill is removed, you can see the heater core (right), and the recirculation door (left), covering up the squirrel cage.

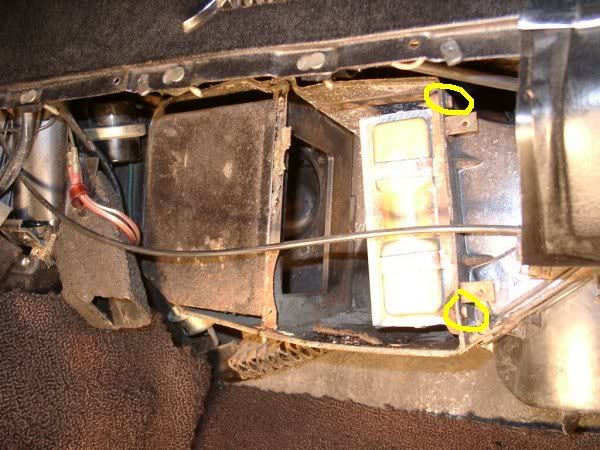

7) Remove two screws from the front of the heater core case. (yellow circles):
Obviously, I am not the first to do this on my car, only these two screws were installed.

You can even see where my core is leaking, bottom center (where it is green):

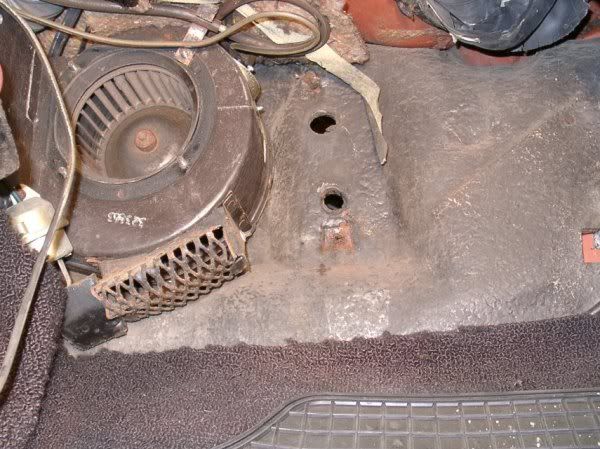

8) Loosen seven nuts from the engine side of the dash securing the heater assembly.. Note: I am not sure this applies to all cars. I only found 2 nuts, one directly above and one directly below the heater hose holes, you can see the small holes for the threaded studs for them here:

9) Pull the heater assembly away from the dash.

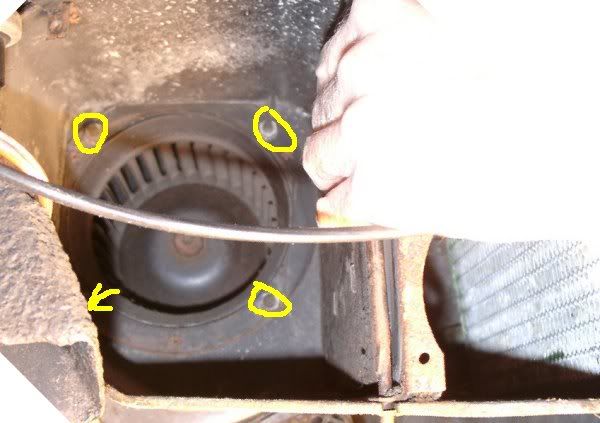

NOTE: This won't work because of the four nuts holding the heater case to the blower squirrel cage! You must remove them from inside the car:

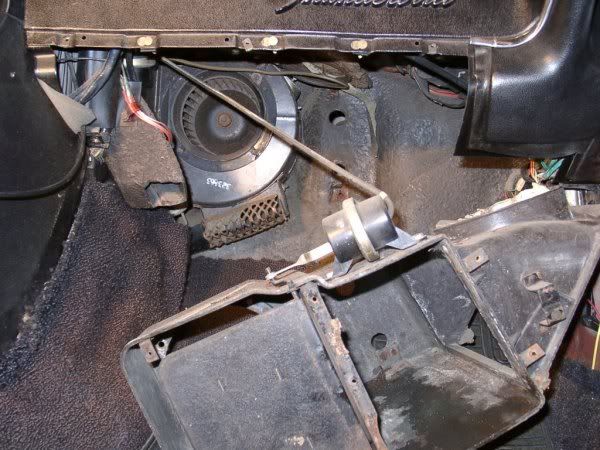

Then you can pull the heater case down.

9) continued: Remove four screws (I guess they mean the squirrel cage screws here) disconnect a cable (to the fresh air vent) and position the fresh air vent out of the way to gain access to the core rear screws.
Note: Here is the case without the core, because I only had the two easy screws to remove, not the nasty ones at the back. Oh yeah, you need to pull the vacuum hose off the recirc door actuator.

10) Remove two rear screws from the rear side of the core and remove the core.

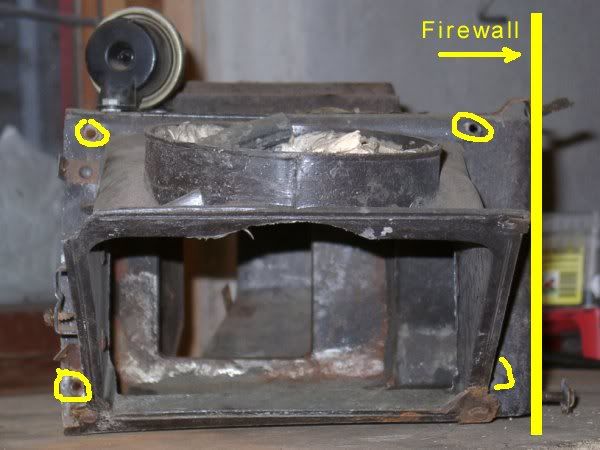

Note: here is the heater case on my workbench, with the fresh air duct removed. Circled in yellow on the left are the two "easy" core retaining screws, and on the right (near the firewall) the two rear ones.

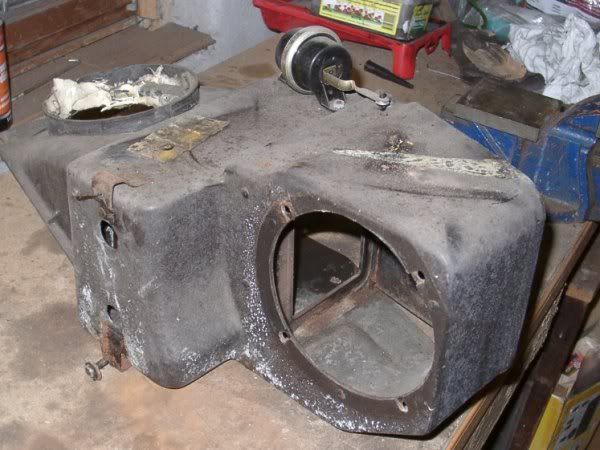

Once you repair or replace the core, just put it all back together in reverse order. I am continuing to take more stuff apart, like the AC box and instrument panel, so I will add more photos later. For now my heater case is spread all over my workbench. This makes it easy to see the two studs and holes for four nuts which are all that held it to the firewall:
The vacuum actuator works perfectly, but all of the door seals are rotted away.


Interesting to see that the rubber hose to the fresh air vent was shredded, no wonder it was always breezy around the feet...
David


User avatar
redstangbob
Posts: 3227
Joined: Fri May 02, 2008 4:06 pm
Location: 40 miles east of Wixom

Post by redstangbob » Sun Oct 16, 2011 3:44 pm

Excellent David! Thanks for run down. I think you should cut and paste it into the tbird tech section as well. When you get more of the dash out you can add to it. I found my fresh air rubber boot virtually gone except for the spring clamp. I made up a sleeve from metal duct work and used a big worm drive clamp and some HVAC tape to keep it in place (don't tell JW) ;-)
It's gonna be cool when it's done
And now it's really cool !!


Moderator 64-66 Forum
65 hardtop

User avatar
Jim Wulf
Posts: 1715
Joined: Mon Apr 06, 2009 9:19 pm
Location: S.E. Pennsylvania
Contact:

Post by Jim Wulf » Sun Oct 16, 2011 4:22 pm

Excellent David! Thanks for run down. I think you should cut and paste it into the tbird tech section as well. When you get more of the dash out you can add to it. I found my fresh air rubber boot virtually gone except for the spring clamp. I made up a sleeve from metal duct work and used a big worm drive clamp and some HVAC tape to keep it in place (don't tell JW) ;-)
[-X :mrgreen:
Jim W, VTCI 1961-1963 Technical Editor
62 SR Red/Black
63 CV Black/Red
Past Birds:
63 MSR Red/Pearl Beige
66 CV Red/Red
63 CV Patrician Green/Pearl Beige
61 HT White/Pearl Beige
63 HT Caspian Blue/Blue Metallic

jidi
Posts: 334
Joined: Mon Mar 09, 2009 7:24 pm

Post by jidi » Sun Oct 16, 2011 6:56 pm

Many thanks for the pix and the info!
I'm planning that project for next spring on my 63 along with a/c servicing while it's all apart.

Jim

Mich 66 Bird
Posts: 61
Joined: Sat Apr 30, 2011 7:35 pm

Post by Mich 66 Bird » Sun Oct 16, 2011 8:52 pm

Just excellent! I just got the vacuum lines for my heater connected properly last month...I still don't have the "HEAT-BOTH-DEF" control working yet.
Your photos really helped...I am gonna get mine working for winter!
thanks
66 T-Bird 428 4V Q-Code

User avatar
john6t6
Posts: 436
Joined: Wed Oct 01, 2003 2:42 pm
Location: Alberta, Canada

Post by john6t6 » Mon Oct 17, 2011 5:48 pm

Thanks for sharing this information & photos to illustrate, very valuable.
1966 Hardtop Sauterne Gold
VTCI #4065

User avatar
SBird
Posts: 132
Joined: Fri Sep 25, 2009 11:26 am
Location: Sellersburg, IN

Post by SBird » Tue Oct 18, 2011 1:03 pm

Thanks for taking the time to share this. Great photos.
I'll get er done with patience and a lot of help. Thanks Forum guys.

User avatar
TsNStangs
Posts: 1835
Joined: Mon Jul 14, 2008 4:24 pm
Location: SoCal

Post by TsNStangs » Tue Oct 18, 2011 3:06 pm

Excellent, David! I moved a copy to the T--Bird Tech area for everyone's future reference - thanks a lot for posting this.
~ Daniel
"I'm your huckleberry..."
VTCI #11333

benelliman
Posts: 197
Joined: Wed Sep 07, 2011 10:10 pm
Location: Los Angeles
Contact:

Post by benelliman » Sat Oct 22, 2011 1:00 am

this is totally awesome.

THANKS MAN!
I'll save some huge dough doing this myself :D
FPA headers
Petronix + FT (NO MORE POINTS!)
17x8 AMR Torque Thrusters
Bosch Platinum Sparkies
Rebuilt Autolite Carb
Edelbrock Air Cleaner
Flowmaster's Exhaust System
1 1/8th in front heavy duty sway bars
Front DB system

User avatar
michaelbenner
Posts: 78
Joined: Sat Nov 19, 2011 8:17 pm
Location: Sacramento, California

Completely confused.

Post by michaelbenner » Sat Nov 19, 2011 8:26 pm

Hello all! I've been lurking for awhile....and finally have hit a wall. I have recently acquired a 66 Q Code convertible, and came to discover that the heater core is diconnected from the system...best guess is a bad heater core.

Using the Shop Manual and this posting (great pics, by the way!) I tried to do some investigating.

My heater box looks just like the one in 16-2 of the shop manual, Fig. 4. But, the removal instructions, and the pictures in this post, show a front-panel with seven screws to remove. I have no such thing...or maybe I am completely blind.

Where is this front panel in figure 4 with the recirculating air grille? My 66 does not have AC...does that matter?

User avatar
michaelbenner
Posts: 78
Joined: Sat Nov 19, 2011 8:17 pm
Location: Sacramento, California

Post by michaelbenner » Sat Nov 19, 2011 8:37 pm

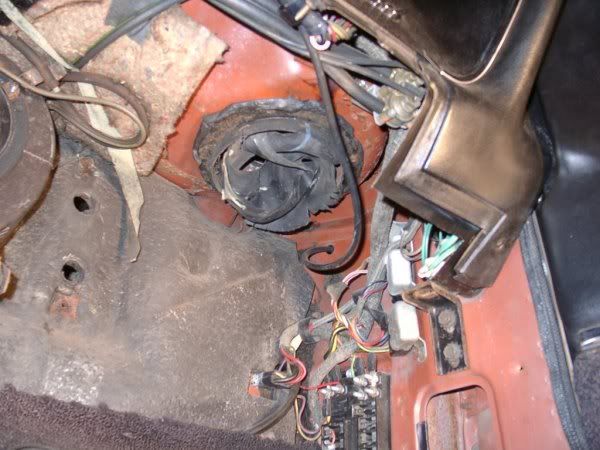

Here's what I see when I remove the lower section of the passenger's side dashboard:


User avatar
redstangbob
Posts: 3227
Joined: Fri May 02, 2008 4:06 pm
Location: 40 miles east of Wixom

Post by redstangbob » Sat Nov 19, 2011 11:17 pm

Where is this front panel in figure 4 with the recirculating air grille? My 66 does not have AC...does that matter?
Yes it matters. A car without A/C won't have a recirculate door, so David's pictures might confuse you. I don't have a 66 shop manual (yet) but the 65 book shows the non A/C heater box, your 66 book should get you through. Someone else here might post pictures of their car or the manual. Good luck, Bob C
It's gonna be cool when it's done
And now it's really cool !!


Moderator 64-66 Forum
65 hardtop

User avatar
michaelbenner
Posts: 78
Joined: Sat Nov 19, 2011 8:17 pm
Location: Sacramento, California

Post by michaelbenner » Sun Nov 20, 2011 12:15 am

Well, that's what is confusing the heck out of me. The shop manual lists the instructions for heater core removal "with or without air conditioning" and doesn't have a separate set of steps for "without."

benelliman
Posts: 197
Joined: Wed Sep 07, 2011 10:10 pm
Location: Los Angeles
Contact:

Post by benelliman » Sun Nov 20, 2011 6:24 pm

michaelbenner wrote:Well, that's what is confusing the heck out of me. The shop manual lists the instructions for heater core removal "with or without air conditioning" and doesn't have a separate set of steps for "without."
i hate my shop manual. i find it a lot less complicating having someone from the threads decipher what it's saying into plain American for me.
FPA headers
Petronix + FT (NO MORE POINTS!)
17x8 AMR Torque Thrusters
Bosch Platinum Sparkies
Rebuilt Autolite Carb
Edelbrock Air Cleaner
Flowmaster's Exhaust System
1 1/8th in front heavy duty sway bars
Front DB system

Desert bird
Posts: 70
Joined: Sat May 07, 2011 10:05 am

Post by Desert bird » Fri Jan 27, 2012 9:51 pm

Today I noticed a small green puddle on the passenger floormat -dang!

Thank You very much for taking the time to post images and notes on removing the heater core from an A/C car. I found the thread doing a search for heater core.

I'd like to replace it with a new core if they're available, otherwise I'll take my chances with a repair. I didn't have good luck when sending the expansion tank to a local shop for repair; it began leaking at the seam a couple weeks after the tube flange was resoldered.
